Application Areas： 60-650t/h

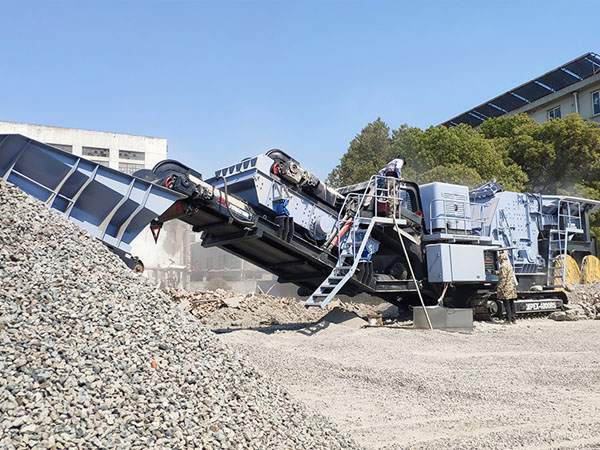

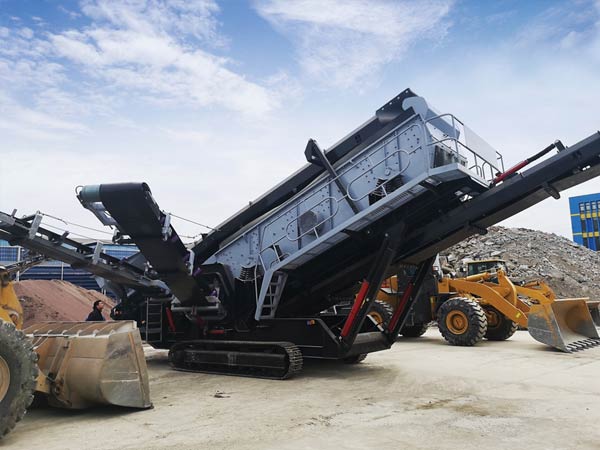

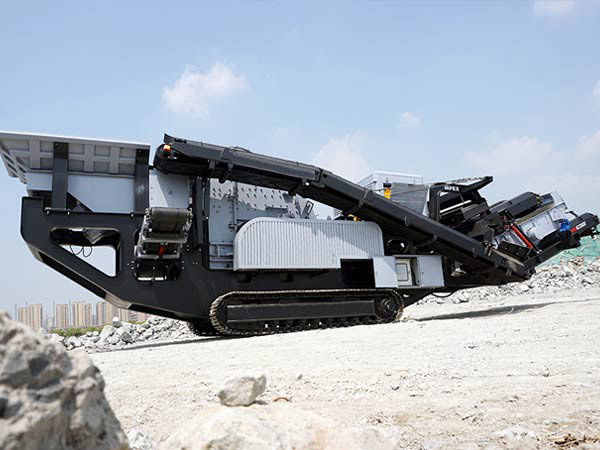

Crawler type hydraulic driving mobile crusher is the mobile crushing and screening equipment with full hydraulic driving crawler vehicle chassis to meet the market demand. The crawler mobile crusher is mainly used for the processing of materials that often need to be relocated, such as metallurgy, chemical industry, building materials, hydropower and so on, especially for the operation of mobile stones such as expressways, railways, hydropower projects, etc. users can adopt various configuration forms according to the type, scale and requirements of processed raw materials.
The materials are evenly transported to crawler type hydraulic driving crushing station by bucket elevator through feeder. After preliminary crushing by crusher, the closed-circuit system is composed of circular vibrating screen to realize the circulation crushing of materials. The materials meeting the requirements of particle size are exported by the conveyor to achieve the production purpose. According to the actual production requirements, the circular vibrating screen can be removed, and the material can be preliminarily crushed, and then operated with other crushing equipment.
The materials are evenly transported to crawler type hydraulic driving crushing station by bucket elevator through feeder. After preliminary crushing by crusher, the closed-circuit system is composed of circular vibrating screen to realize the circulation crushing of materials. The materials meeting the requirements of particle size are exported by the conveyor to achieve the production purpose. According to the actual production requirements, the circular vibrating screen can be removed, and the material can be preliminarily crushed, and then operated with other crushing equipment.
model | Equipment configuration | Adjustable discharge port | yield | External dimension |
SL15L | ZSW3896+LF150 | 40-100 | 100-200 | 13050 x 2950 x 3100 |
SL25L | ZSW4211+LF250 | 50-120 | 200-400 | 12750 x 3000 x 3700 |
SL35L | ZSW4213+LF350 | 50-200 | 300-500 | 14360 x 3000 x 3800 |
SE69L | ZSW3896+PE69 | 60-125 | 100-180 | 12500 x 2950 x 3000 |
SC96L | ZSW3896+SC96 | 60-175 | 120-455 | 13500 x 3400 x 2800 |
SC106L | ZSW4211+SC106 | 70-200 | 155-580 | 14400 x 3600 x 3000 |
