Application Areas： ≤300mm

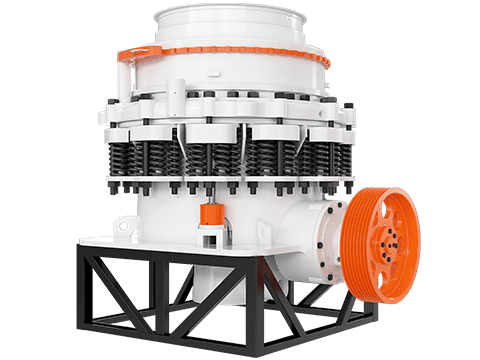

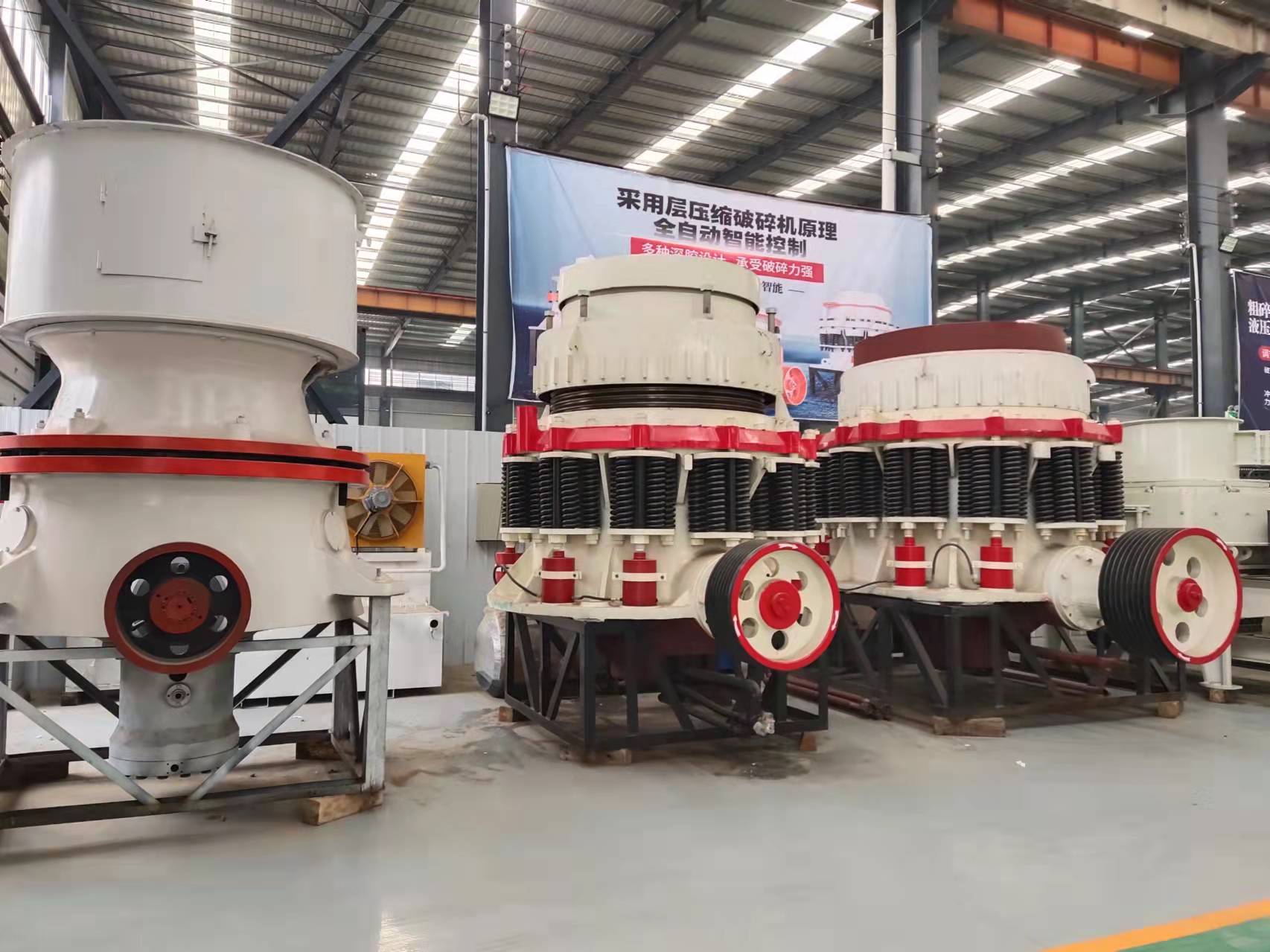

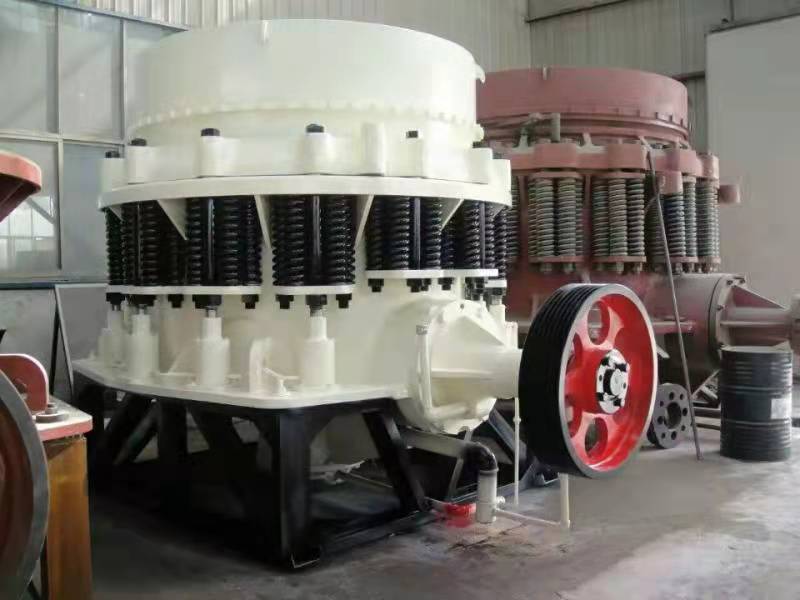

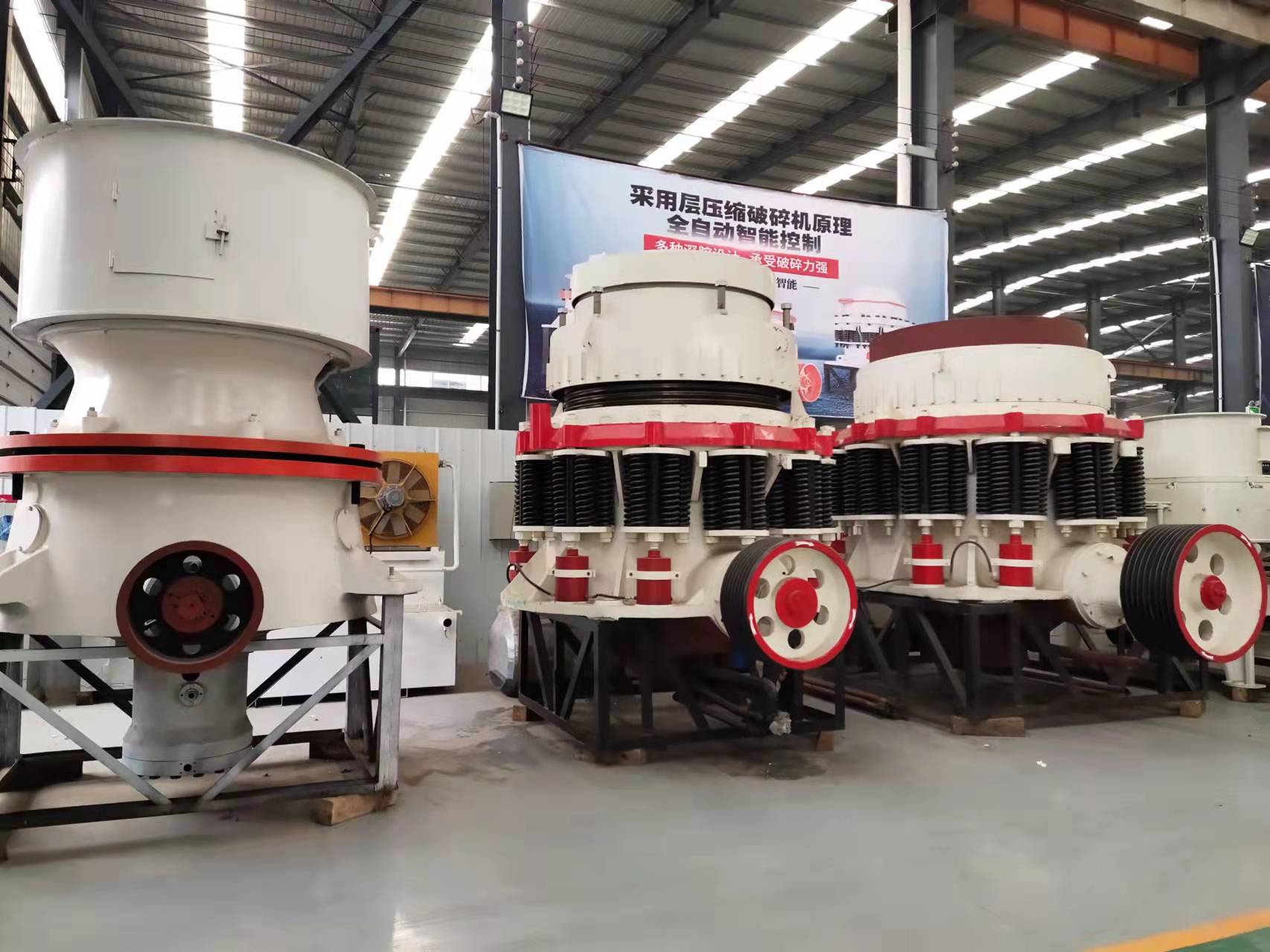

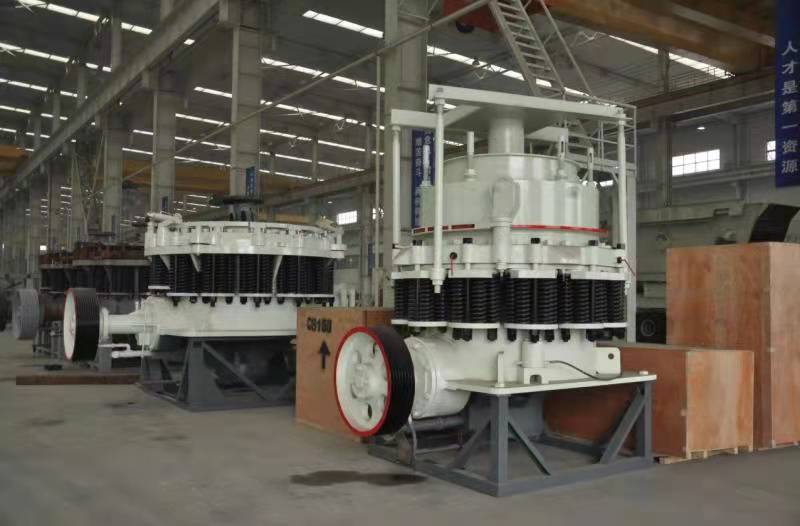

CS Series cone crushers were built for decades of reliable service. The design was as simple as possible with features that were user friendly, and craftsmen with many years of experience built the frames and components for ruggedness and durability with American steel and pride in their work. Because of this, CS Series cone crushers enjoy a worldwide reputation as rugged, durable, easy to maintain, and reliable. Now there is a conversion kit to combine all the features that made them so rugged and reliable, with more modern features to increase production and automation.
Motor drives eccentric bushing to rotate via V-belts, pulley, shaft, pionion, gear. Mantle rotates with eccentric bushing, so mantle goes near and far from the concave, and crush stone into smaller size.
Motor drives eccentric bushing to rotate via V-belts, pulley, shaft, pionion, gear. Mantle rotates with eccentric bushing, so mantle goes near and far from the concave, and crush stone into smaller size.
Model | Dia. mm (feet) | Cavity | Feed Opening | Outlet Setting (mm) | Shaft Speed (r/min) | Power (kw) | Capacity (t/h) | Weight (t) | Dimension (mm) | |
Closing Side (mm) | Open Side (mm) | |||||||||
CSB75 | 900 (3') | Fine | 83 | 102 | 9-22 | 580 | 75(100) | 45-91 | 12.2 | 2821×1880×2164 |
Coarse | 159 | 175 | 13-38 | 59-163 | ||||||
CSB160 | 1295 (4 1/4') | Fine | 109 | 137 | 13-31 | 485 | 185(250) | 109-181 | 23.8 | 2800×2342×2668 |
Medium | 188 | 210 | 16-31 | 132-253 | ||||||
Coarse | 216 | 241 | 19-51 | 172-349 | ||||||
CSB240 | 1650 (5 1/2') | Fine | 188 | 209 | 16-38 | 485 | 240(320) | 181-327 | 55 | 3911×2870×3771 |
Medium | 213 | 241 | 22-51 | 258-417 | ||||||
Coarse | 241 | 268 | 25-64 | 299-635 | ||||||
Model | Dia. mm (feet) | Cavity | Feed Opening | Outlet Setting (mm) | Shaft Speed (r/min) | Power (kw) | Capacity (t/hour) | Weight (t) | Dimension (mm) | |
Closing Side (mm) | Open Side (mm) | |||||||||
CSD75 | 914 (3') | Fine | 13 | 41 | 3-13 | 580 | 75(100) | 27-90 | 12.2 | 2821×1880×2410 |
Coarse | 33 | 60 | 3-16 | 27-100 | ||||||
CSD160 | 1295 (4 1/4') | Fine | 29 | 64 | 3-16 | 485 | 160(220) | 36-163 | 23.8 | 2800×2342×2668 |
Medium | 54 | 89 | 6-16 | 82-163 | ||||||
Coarse | 70 | 105 | 10-25 | 109-227 | ||||||
CSD240 | 1676 (5 1/2') | Fine | 35 | 70 | 5-13 | 485 | 240(320) | 90-209 | 55 | 3917×2870×3771 |
Medium | 54 | 89 | 6-19 | 136-281 | ||||||
Coarse | 98 | 133 | 10-25 | 190-336 | ||||||
