Application Areas： Mainly used in metallurgy, chemical industry, hydropower engineering and other industries.

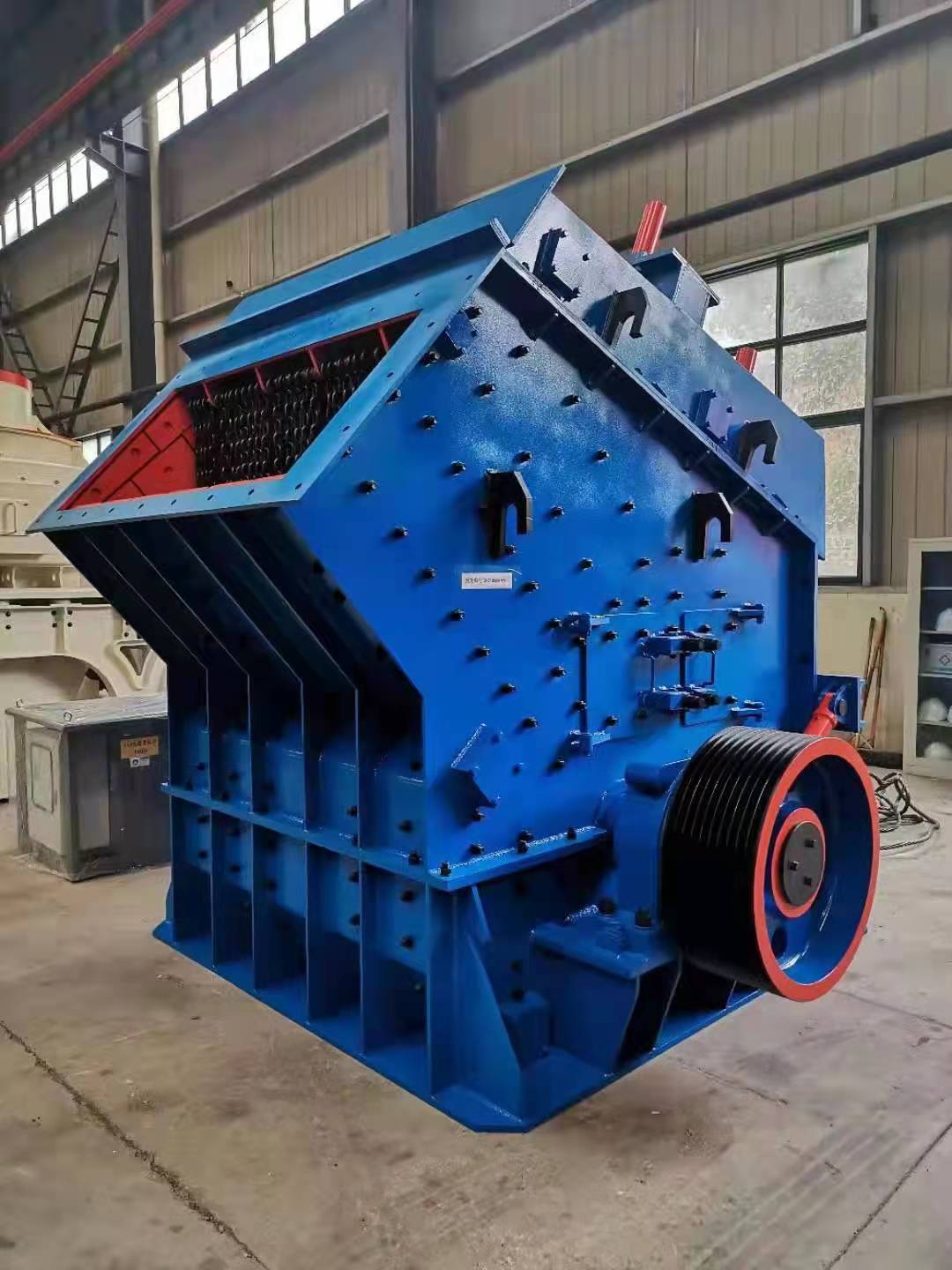

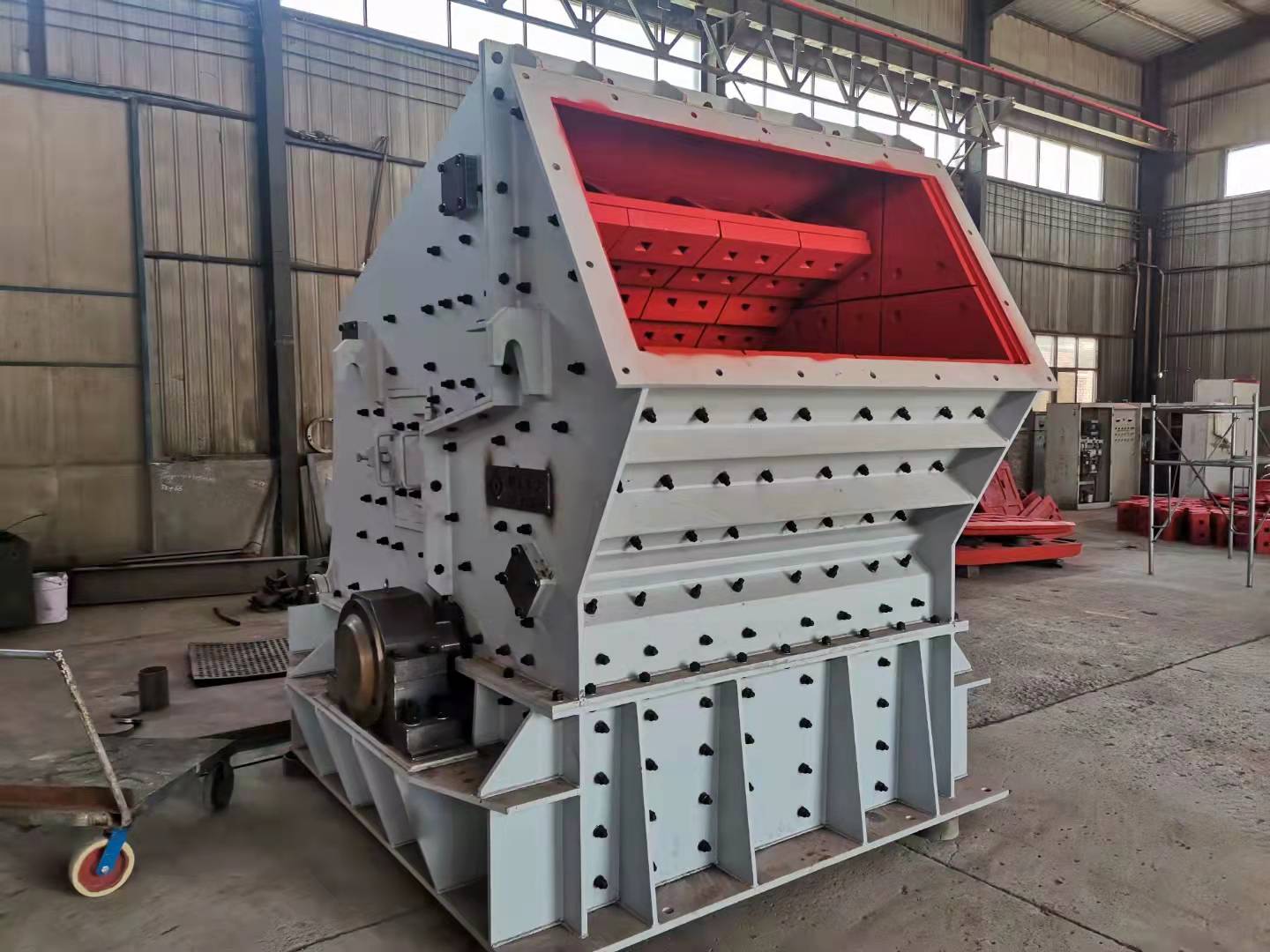

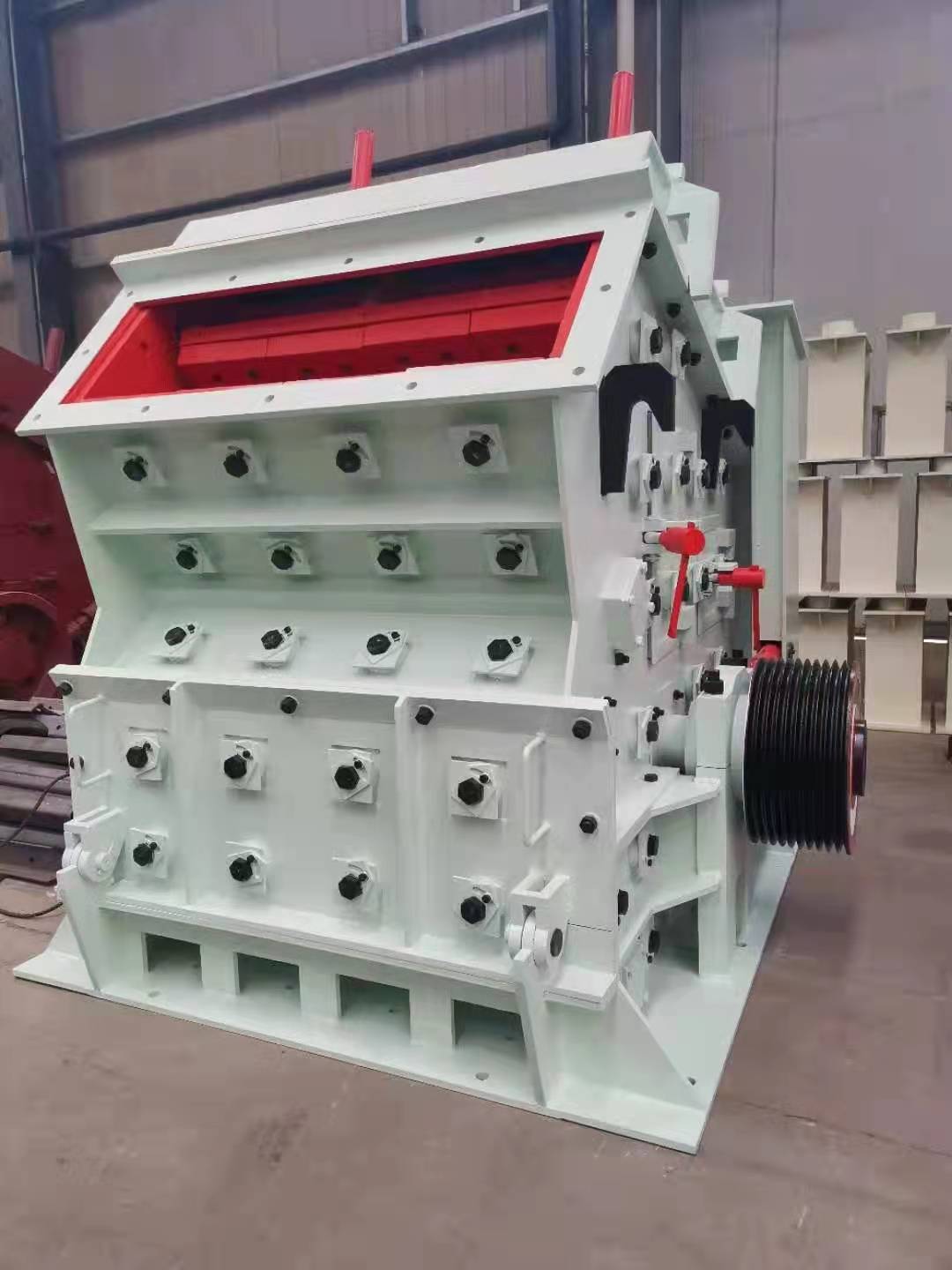

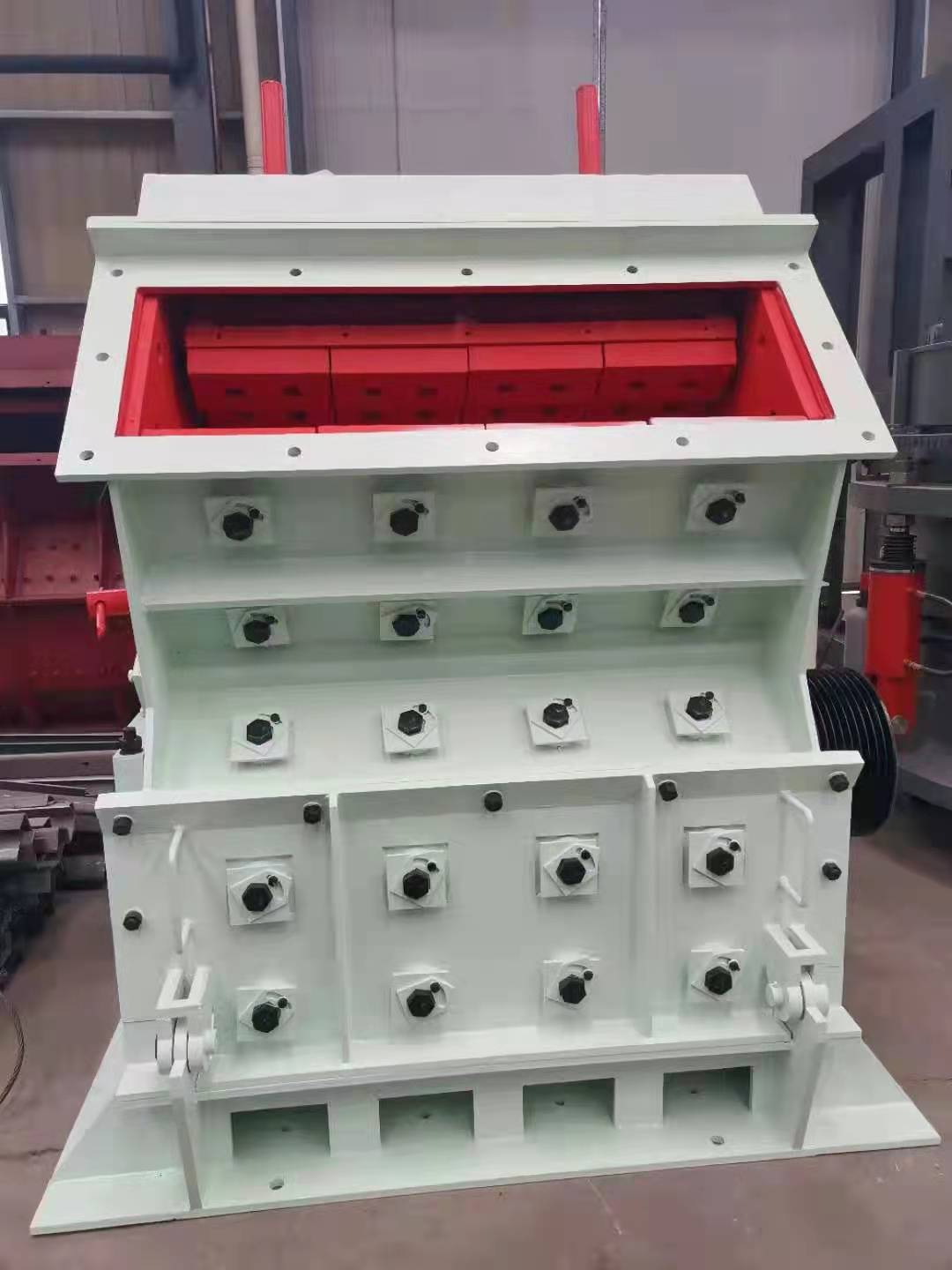

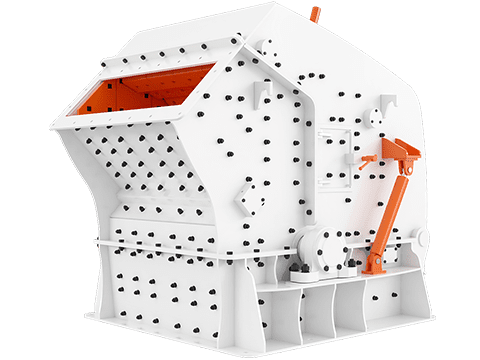

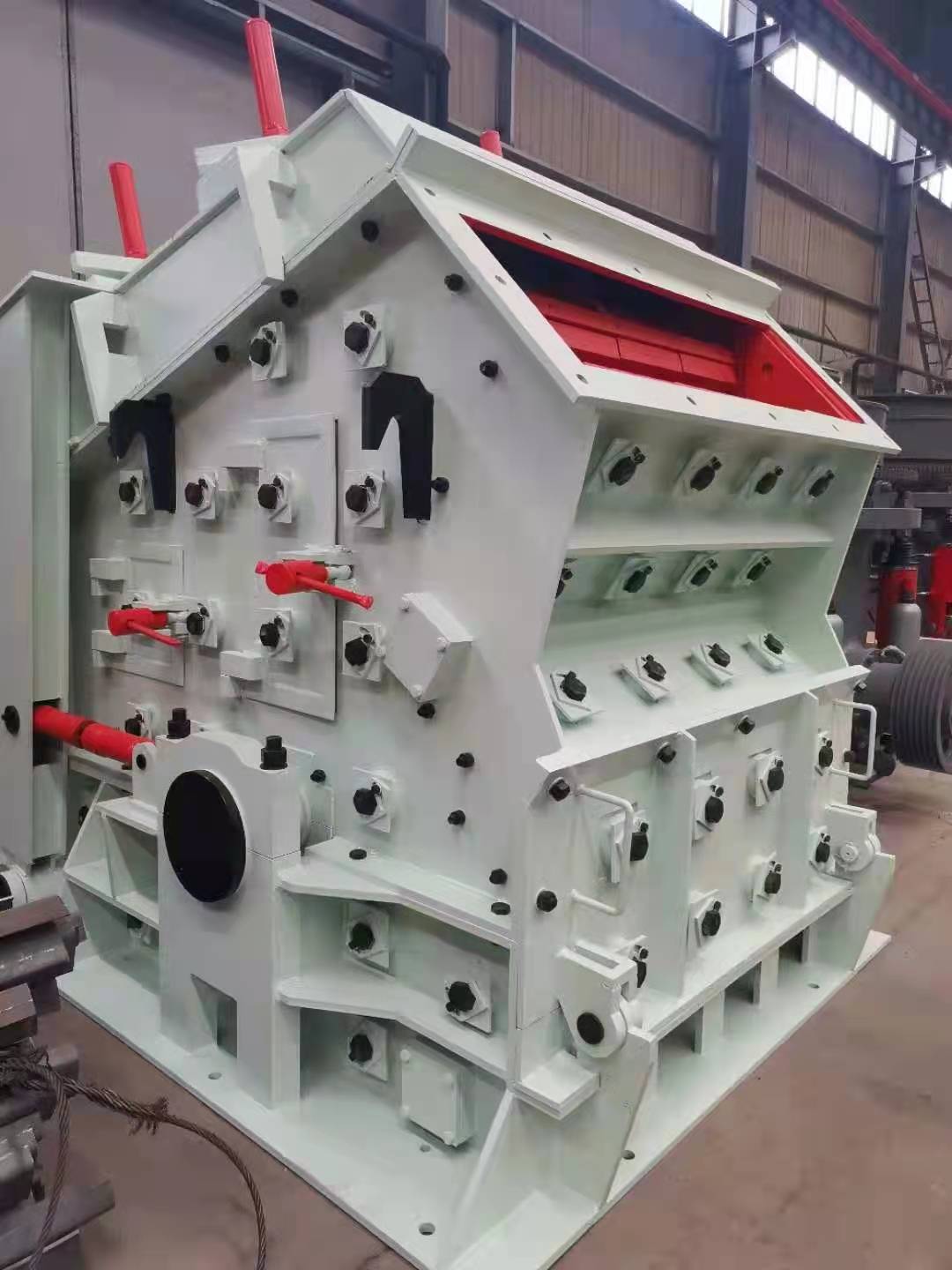

The impact crusher adopts new manufacturing technology and unique structural design, so that the finished product particles are cubic, no tension and cracks, and the shape is better. The equipment can crush all kinds of coarse, medium and fine materials (such as granite, limestone, concrete aggregate, etc.) with feed particle size no more than 800mm and compressive strength no more than 350Mpa.

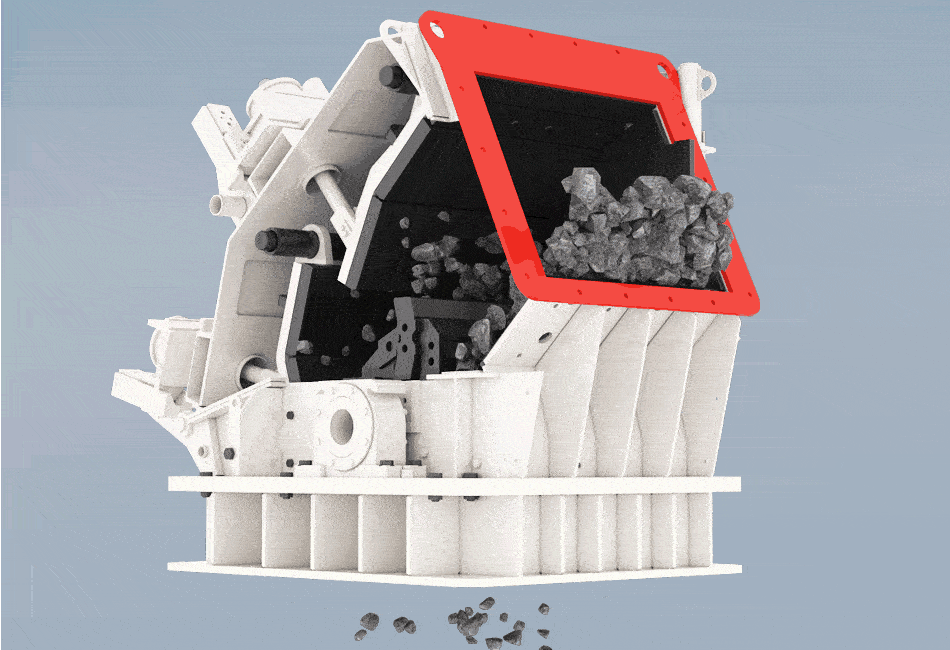

Impact crusher is a kind of crushing machine which uses impact energy to crush materials. When working, driven by the motor, the rotor rotates at a high speed. When the material enters the action area of the plate hammer, it collides with the plate hammer on the rotor, and then it is thrown to the impact device for crushing again. Then, it bounces back from the impact lining plate to the plate hammer action area for re crushing. This process is repeated, and the materials enter the first, second, third and impact cavities from large to small for repeated crushing until the materials It is crushed to the required size and discharged from the discharge port. Adjusting the gap between the impact frame and the rotor can change the size and shape of the material。
Impact crusher is a kind of crushing machine which uses impact energy to crush materials. When working, driven by the motor, the rotor rotates at a high speed. When the material enters the action area of the plate hammer, it collides with the plate hammer on the rotor, and then it is thrown to the impact device for crushing again. Then, it bounces back from the impact lining plate to the plate hammer action area for re crushing. This process is repeated, and the materials enter the first, second, third and impact cavities from large to small for repeated crushing until the materials It is crushed to the required size and discharged from the discharge port. Adjusting the gap between the impact frame and the rotor can change the size and shape of the material。
Model | Size of rotor (mm) | Feed opening (mm) | Max. feed size (mm) | Capacity (t/h) | Power of Motor (kW) | Weight (t) | Overall Dimensions (mm) |
PF1010 | Φ1040×1000 | 510×1040 | 200 | 50-90 | 75(100) | 12.5 | 2455×2090×2800 |
PF1210 | Φ1260×1050 | 465×1155 | 250 | 70-130 | 110(150) | 16 | 2582×2052×2810 |
PF1214 | Φ1260×1400 | 465×1485 | 300 | 90-180 | 132(175) | 18.5 | 2582×2410×2810 |
PF1315 | Φ1280×1500 | 700×1540 | 300 | 120-250 | 200(270) | 21 | 2930×2765×3053 |
